Power pack 200501003903-1 · Heads BMC 100T / BMC 150T

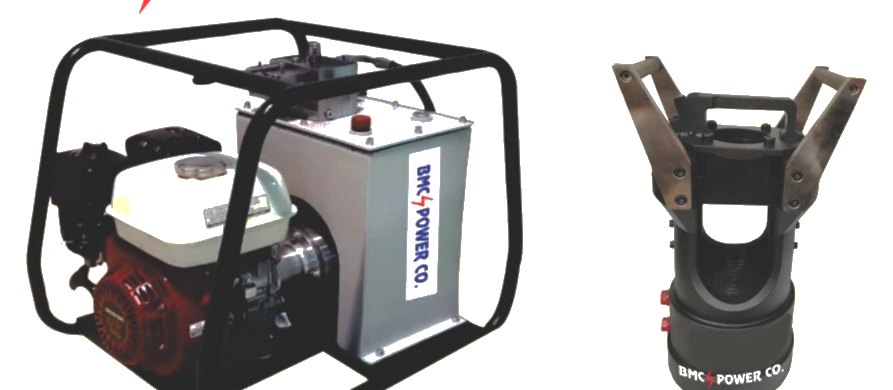

Engine Driven Hydraulic Compressor Unit
Made in India
A petrol-engine hydraulic power pack and crimping head for cable crimping in remote areas with no electricity supply. Widely used in heavy power transmission and distribution, railway electrification and utility work.
- Runs anywhere — no electricity source needed
- Rated pressure of 700 bar, held for extended durations
- Built for large capacity crimping and continuous operation
- Full sight oil level gauge for quick checking on site
- Crimping heads available in 100 ton and 150 ton capacity
| Petrol engine | 3.7 kW, 3600 rpm (Honda GX200) |
|---|---|
| Nominal pressure | 10 to 700 bar |
| Flow, 1st stage | approx. 8.7 lpm at 70 bar |
| Flow, 2nd stage | approx. 1.8 lpm at 700 bar |
| Tank volume | 20 litres |
| Usable volume | 15 litres |
| Oil type | ISO VG 68 |
| Weight of power pack | 61 kg without oil |
| Weight of head | 37 kg |
| Item | Description | Model code |
|---|---|---|
| 01 | Level indicator | 76 mm |
| 02 | Pressure limiting valve | MVE 4A |
| 03 | Direction seated valve | VHP 1-L2 |
| 04 | Pressure gauge | Bottom entry |
| 05 | Hydraulic pump | RO, 9-2.2, 2-2 |
| 06 | Engine, Honda | GX 200 |
| 07 | Power pack | IN19-034-H-00-00 |
| 08 | Crimping head | BMC 100T |
The hydraulic power pack is manufactured by Hawe Hydraulic Pvt. Ltd., Bangalore, and is designed solely for cable crimping. The 100 ton and 150 ton crimping heads are manufactured by BMC Power Co.
Manufactured at our own works in Delhi. Prompt after-sales service and genuine spare parts available across India, with export supply to Africa, the Middle East and South East Asia.
