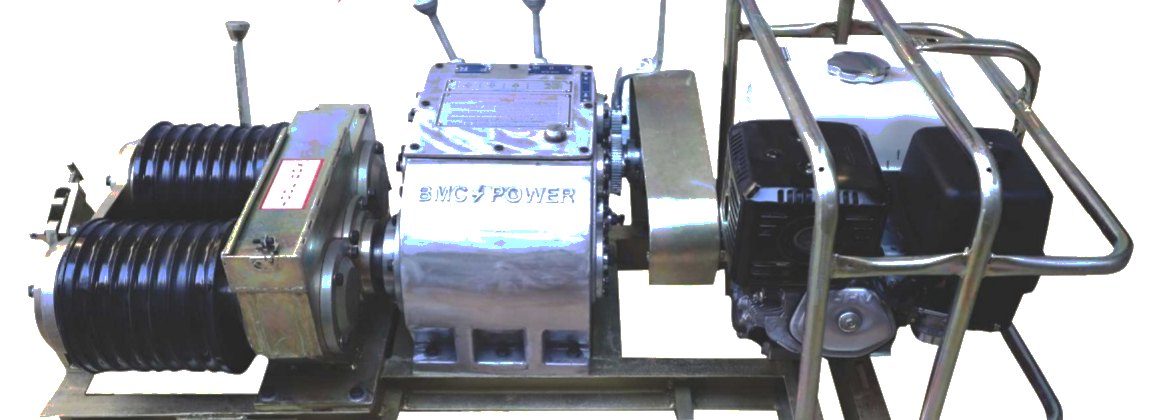

BMC-MW-5T
Mechanical Winch 5 Ton
Patent 334658-001Made in India
The machine BMC Power built its reputation on. Designed for tower erection, stringing operations of low and medium voltage overhead lines, and general lifting work.
Max pull50kN
- Three gears giving 50 kN, 35 kN and 16 kN of pull
- Negative brake safety feature
- Every winch is tested on our own test bench for a safe load of five tons before it is supplied
- Compact at 300 kg, easy to move to remote sites
- Customised to client requirement
| Maximum pull | 50 kN |
|---|---|
| Capstan | Double |
| Outer diameter | 220 mm x 180 mm with 10 grooves |
| Rope diameter | 12 mm to 20 mm |
| Weight | 300 kg |
| Dimensions (L x B x H) | 1370 x 805 x 650 mm (packing size) |
| Engine | Honda Japan GX390 |
| Max net torque | 26.5 Nm / 2500 rpm |
| Gear | 1 | 2 | 3 |
|---|---|---|---|
| Max pull | 50 kN | 35 kN | 16 kN |
| Speed km/h | 4.7 | 6.8 | 15 |
Manufactured at our own works in Delhi. Prompt after-sales service and genuine spare parts available across India, with export supply to Africa, the Middle East and South East Asia.
