Underground cabling / tower erection

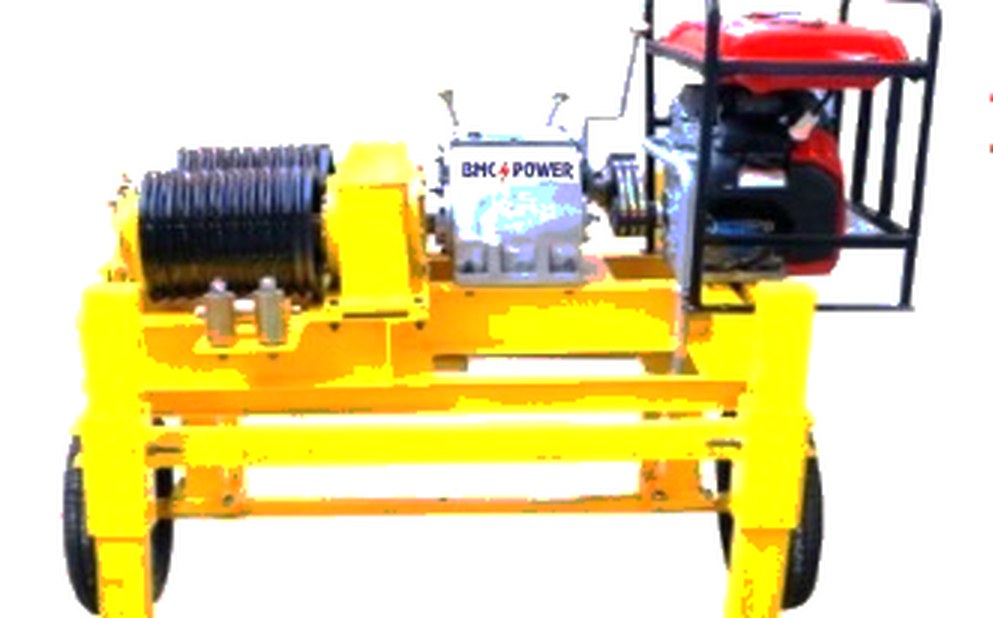

Winch cum Puller 8 Ton
Further development in progressMade in India
Our highest-capacity machine, designed for underground cabling, tower erection, reconductoring and stringing of low and medium voltage overhead lines. Built at our own works and shown to the Union Minister of Power at GRIDCON 2025. It is currently being refined further, so please check lead time with us when you enquire.
Max pull80kN
- 80 kN maximum pull across three gears
- Built for underground cabling as well as overhead line work
- Negative brake, so the load will not drop without releasing the automatic brake
- Trolley-mounted with screw jacks for stable anchoring on site
- Engineered as a low-cost Indian alternative to imported pulling equipment
| Maximum pull | 80 kN |
|---|---|
| Capstan | Double |
| Outer diameter | 300 mm x 250 mm with 10 grooves |
| Rope diameter | 12 mm to 25 mm |
| Weight | 600 kg |
| Dimensions (L x B x H) | 1375 x 1575 x 1450 mm |
| Engine | Honda Japan GX690 |
| Max net torque | 22.1 HP / 3600 rpm |
| Gear | 1 | 2 | 3 |
|---|---|---|---|
| Max pull | 80 kN | 60 kN | 20 kN |
| Speed km/h | 4 | 6 | 10 |
This machine has been built and demonstrated, and is being refined further following what we learned in the field. Please check current lead time with us when you enquire.
Built at our own works in Delhi. Prompt after-sales service and genuine spare parts available across India, with export supply to Africa, the Middle East and South East Asia.
